| Material: | High quality stainless steel wire |
| Feature: | Excellent resistance against acid |
| Application: | Guard against theft, insect-resistant |
Stay Connected: +86-318-7588111

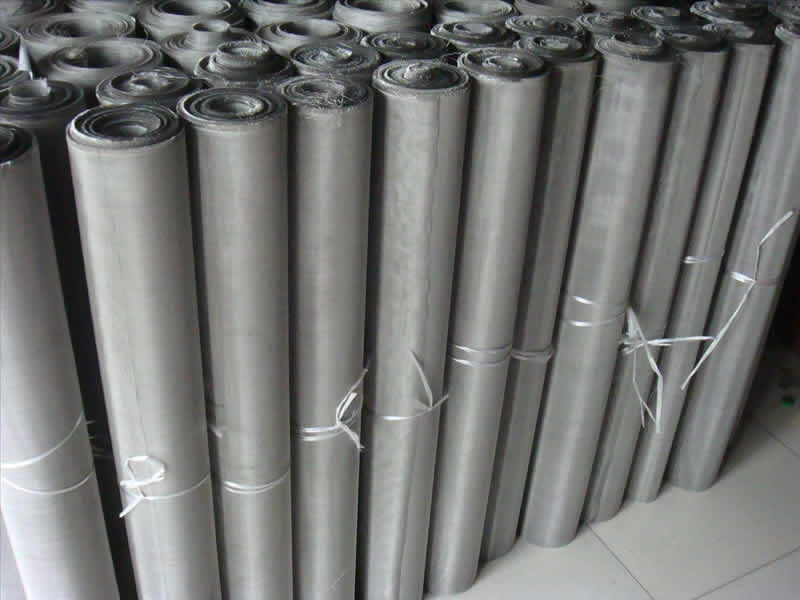

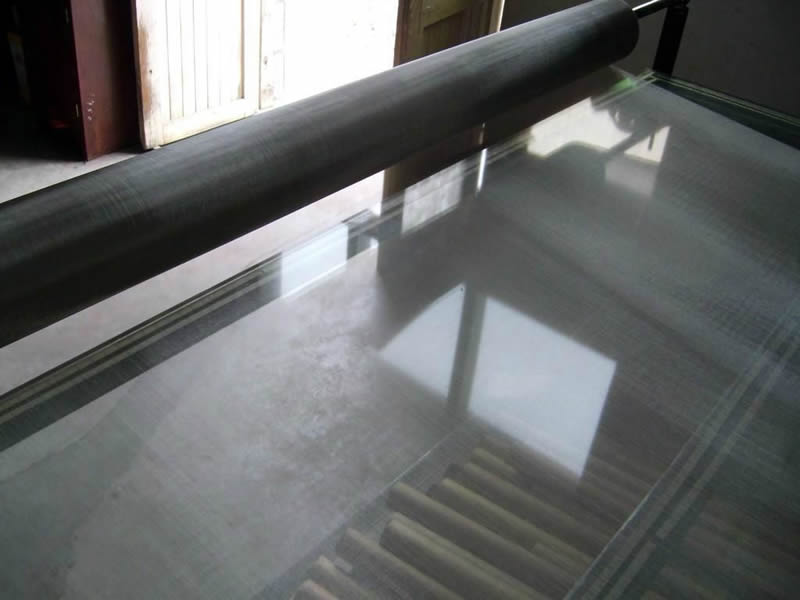

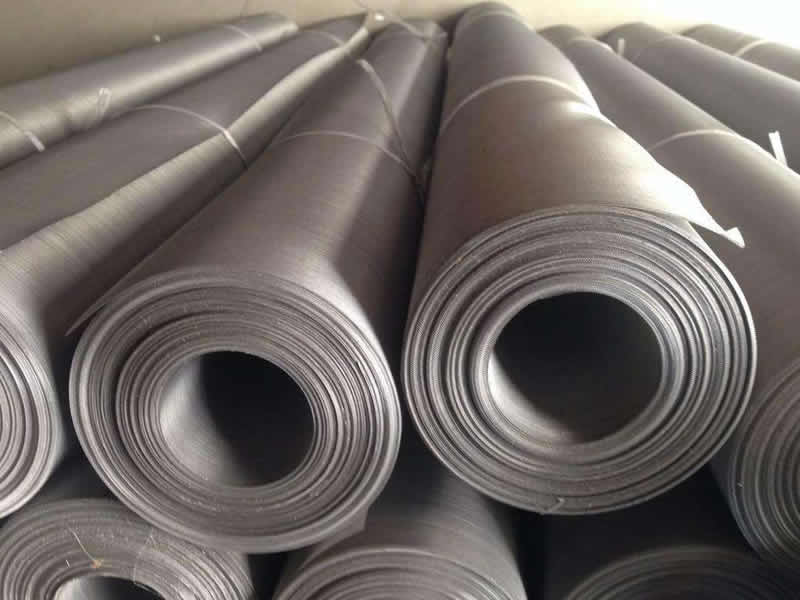

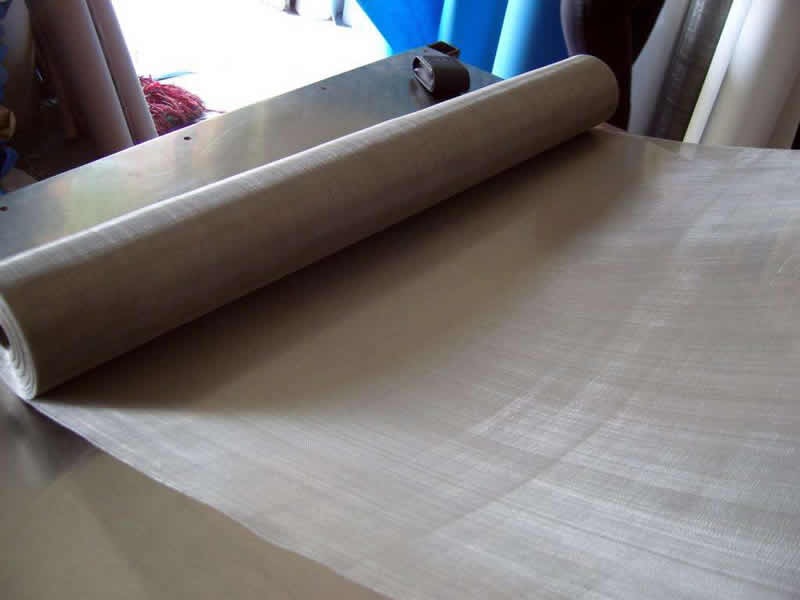

Stainless Steel Wire Mesh
Products
Stainless Steel Wire Mesh

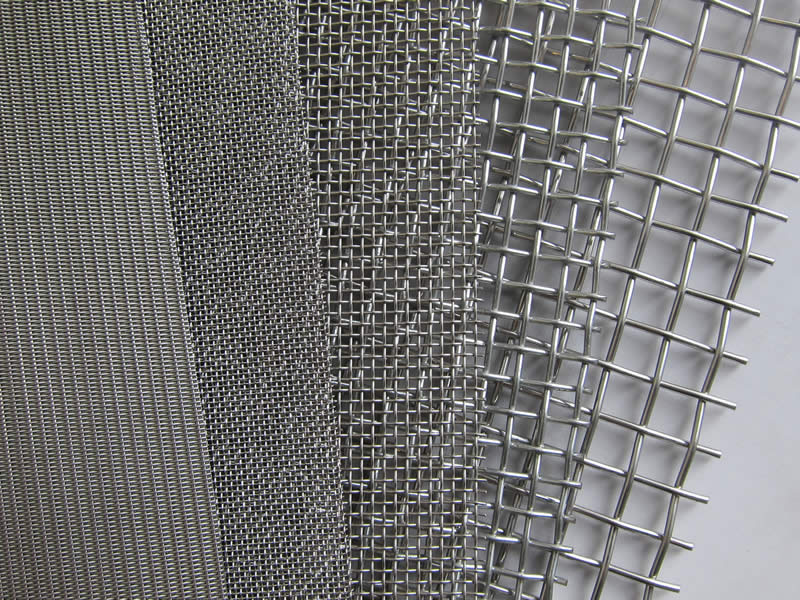

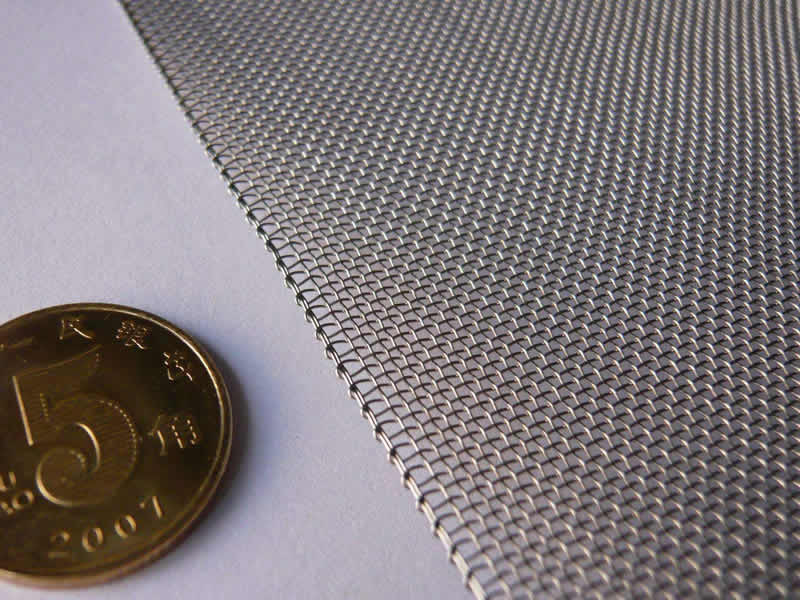

Stainless Steel Wire Mesh is one kind of wire mesh netting, woven by stainless steel wire.
It is also called woven wire,stainless steel wire cloth, stainless steel mesh screen, stainless mesh, stainless wire mesh, ss wire mesh.
The feaure of Stainless steel is wear-resisting, heat-resisting, acid-resisting and corrosion resisting.
Many different grades of stainless are used in wire mesh. 304,304L,316,316L are the most common, others are used in specific applications to take advantage of each grade’s unique properties.
Materials: Mild steel wire, brass wire, nickel wire, stainless steel wire, polyester filter.
Materials: SUS 302, 304, 304L, 316, 316L.

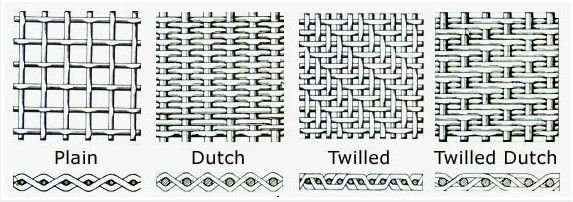

Weave Patterns: Plain weave, dutch weave, twill weave, dutch twill weave.
Characteristic: Good antiwear characteristic, heat-resistance and acid, corrosion resistance.
Use: Stainless Steel Dutch Weave Filter Cloth is utilized as filter fittings for chemical industry, medicine, petroleum, telecom communication, scientific research units etc.
| Stainless Steel Wire Mesh and Wire Cloth, Plain Weave | |||
| Mesh | Wire Dia. (MM) | Opening (MM) | Material (AISI) |
| 7meshx7mesh | 1.00 | 2.63 | 304 or316 |
| 10meshx10mesh | 0.60 | 1.94 | 304 or316 |
| 12meshx12mesh | 0.50 | 1.62 | 304 or316 |
| 16meshx16mesh | 0.40 | 1.19 | 304 or316 |
| 16meshx16mesh | 0.35 | 1.24 | 304 or316 |
| 18meshx18mesh | 0.35 | 1.06 | 304 or316 |
| 20meshx20mesh | 0.40 | 0.87 | 304 or316 |
| 24meshx24mesh | 0.26 | 0.80 | 304 or316 |
| 30meshx30mesh | 0.30 | 0.55 | 304 or316 |
| 35meshx35mesh | 0.17 | 0.56 | 304 or316 |
| 40meshx40mesh | 0.23 | 0.40 | 304 or316 |
| 50meshx50mesh | 0.20 | 0.31 | 304 or316 |
| 60meshx60mesh | 0.15 | 0.27 | 304 or316 |
| 70meshx70mesh | 0.12 | 0.24 | 304 or316 |
| 80meshx80mesh | 0.13 | 0.19 | 304 or316 |
| 90meshx90mesh | 0.12 | 0.16 | 304 or316 |
| 100meshx100mesh | 0.10 | 0.15 | 304 or316 |
| 120meshx120mesh | 0.09 | 0.12 | 304 or316 |
| 150meshx150mesh | 0.063 | 0.11 | 304 or316 |
| 180meshx180mesh | 0.053 | 0.09 | 304 or316 |
| 200meshx200mesh | 0.053 | 0.07 | 304 or316 |
| Stainless Steel Wire Mesh and Wire Cloth, Twill Weave | |||
| Mesh | Wire Dia. (MM) | Opening (MM) | Material (AISI) |
| 250meshx250mesh | 0.040 | 0.063 | 316 |
| 300meshx300mesh | 0.040 | 0.044 | 316 |
| 325meshx325mesh | 0.035 | 0.043 | 316L |
| 350meshx350mesh | 0.030 | 0.042 | 316L |
| 400meshx400mesh | 0.030 | 0.033 | 316L |
| 450meshx450mesh | 0.028 | 0.028 | 316L |
| 500meshx500mesh | 0.025 | 0.026 | 316L |
| Stainless Steel Wire Cloth, Dutch Weave | ||
| Mesh | Wire Dia. (MM) | Material (AISI) |
| 12mesh x 64mesh | 0.58 x 0.40 | 304 or 316 |
| 24mesh x 110mesh | 0.36 x 0.25 | 304 or 316 |
| 14mesh x 88mesh | 0.50 x 0.33 | 304 or 316 |
| 30mesh x 150mesh | 0.23 x 0.18 | 304 or 316 |
| 40mesh x 200mesh | 0.18 x 0.13 | 304 or 316 |
| 50mesh x 250mesh | 0.14 x 0.11 | 304 or 316 |
| 80mesh x 700mesh | 0.10 x 0.08 | 304 or 316 |
| 165mesh x 800mesh | 0.071 x 0.040 | 304 or 316 |
| 165mesh x 1400mesh | 0.06 x 0.04 | 304 or 316 |
| 200mesh x 1800mesh | 0.05 x 0.032 | 304 or 316 |
| 825mesh x 2300mesh | 0.035 x 0.025 | 316L |
| 400mesh x 2800mesh | 0.030 x 0.02 | 316L |

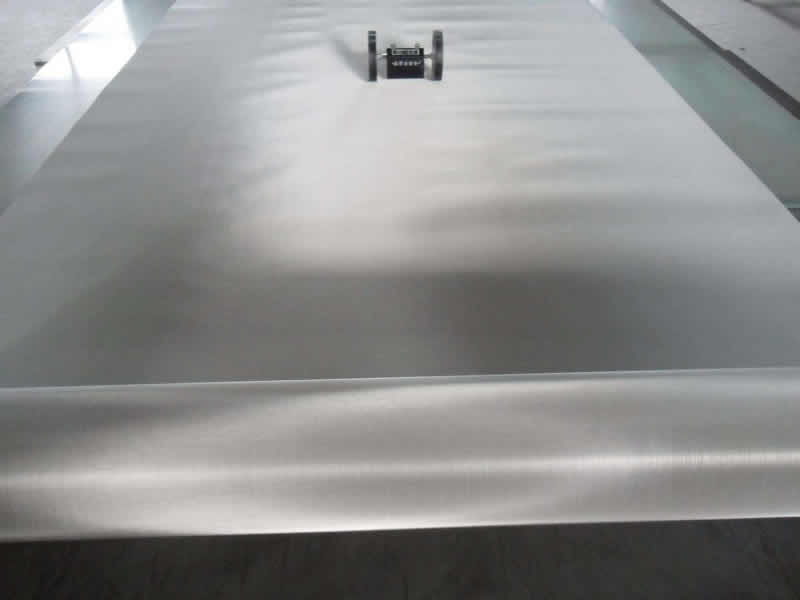

Width of Stainless Steel Wire Mesh: 0.6m-1.5m
