| Material: | Iron, Stainless |
| Feature: | Corrosive Resistance |
| Application: | Protection, Decoration |
Stay Connected: +86-318-7588111
Perforated Metal Mesh
Products
Perforated Metal Mesh
Perforated metal mesh information: Perforated metal usually used galvanized steel, stainless steel, copper steel, aluminum steel, nickel steel and alloy steel as material. We have advanced CNC equipment, our products made by model. Our products have the advantage of high precision, small error and good quality. The punch diameter from 0.3mm to 100mm, and made thickness equal diameter, namely the thickness 0.5mm can punch diameter 0.5mm.

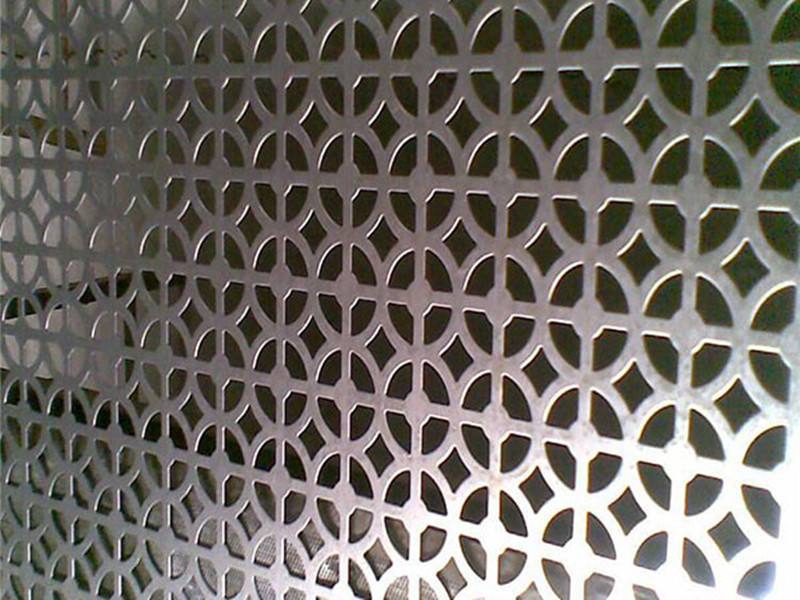

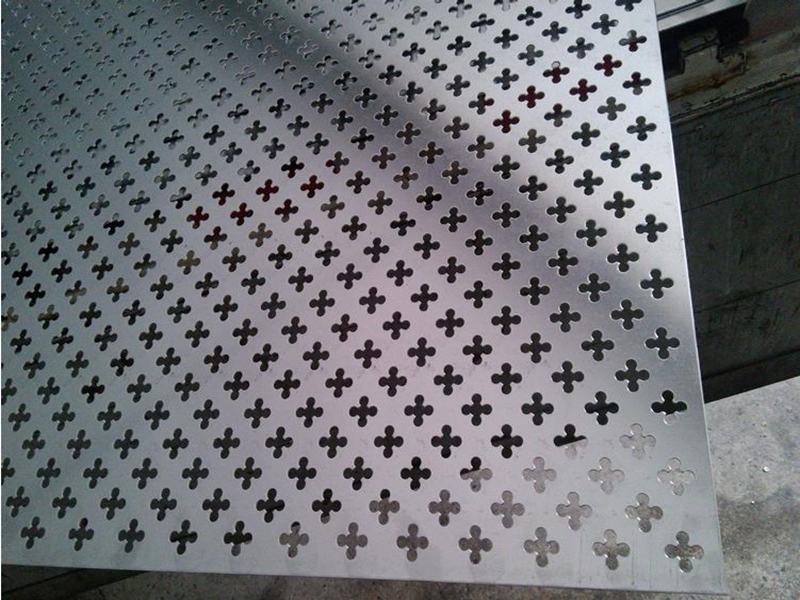

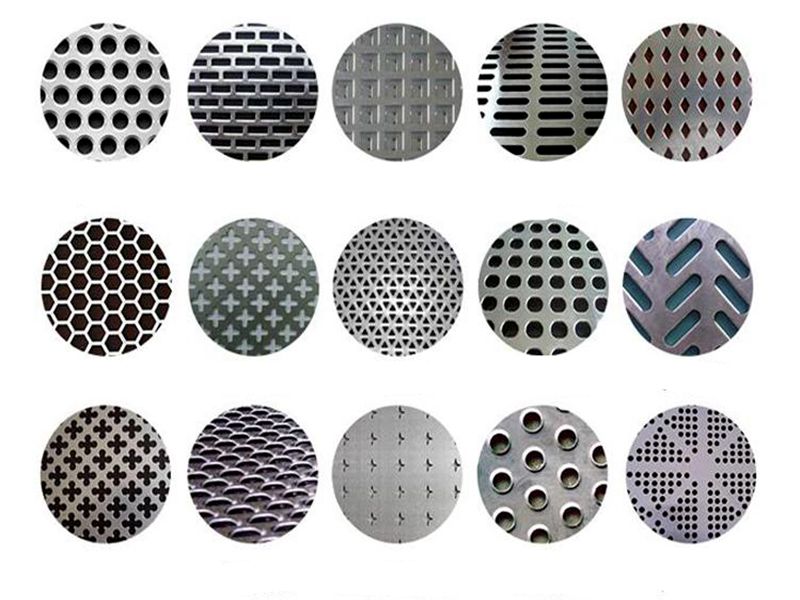

We can offer perforated metal with various patterns mainly standard perforated patterns and decorative patterns.
Custom designs available. Precise parameters guaranteed.
Surface: Spray, polishing, oxidation treatment, galvanized, etc.
Material: We specializes in manufacturing round hole perforated sheets in various high quality materials including steel ( mild steel or carbon steel, no painting, galvanized or PVC coated), stainless steel, aluminum, copper and brass or other materials as your request.

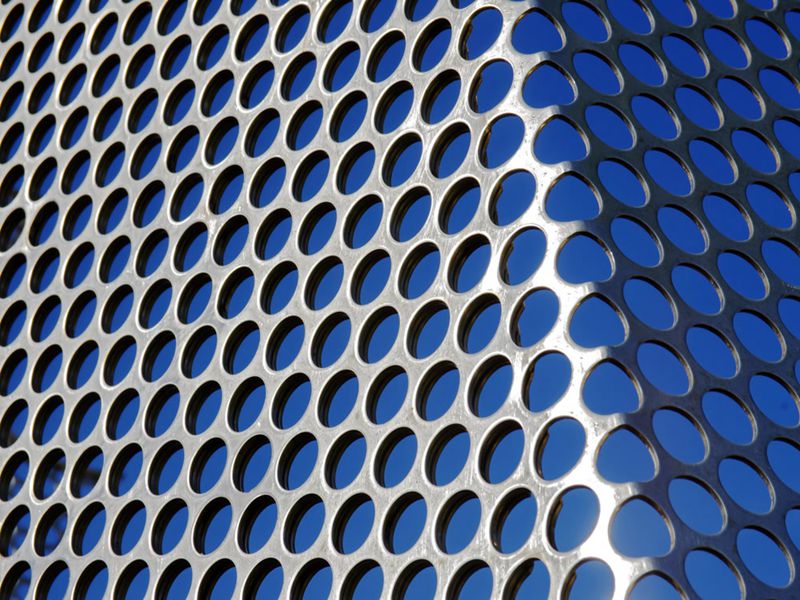

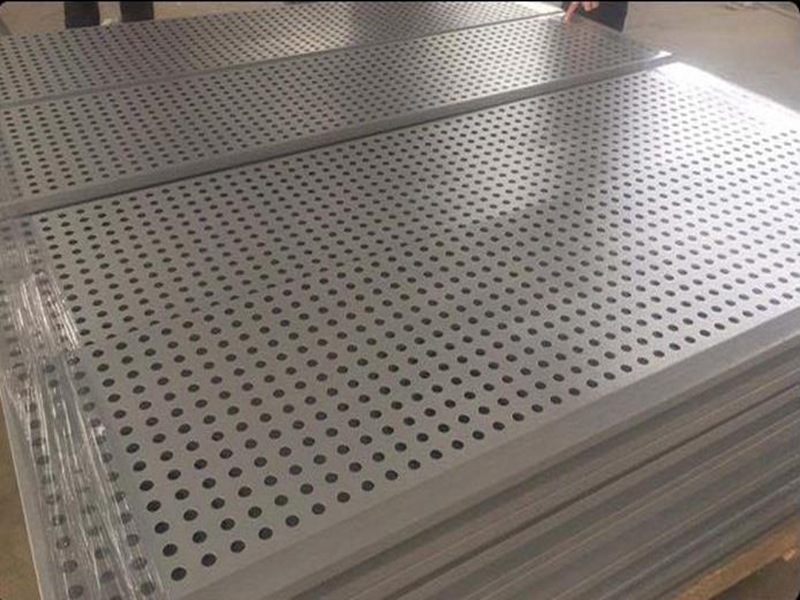

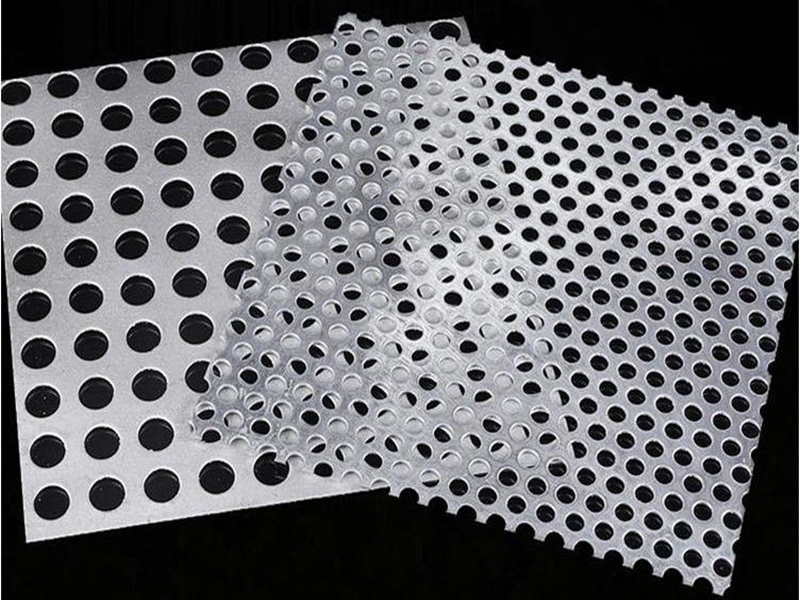

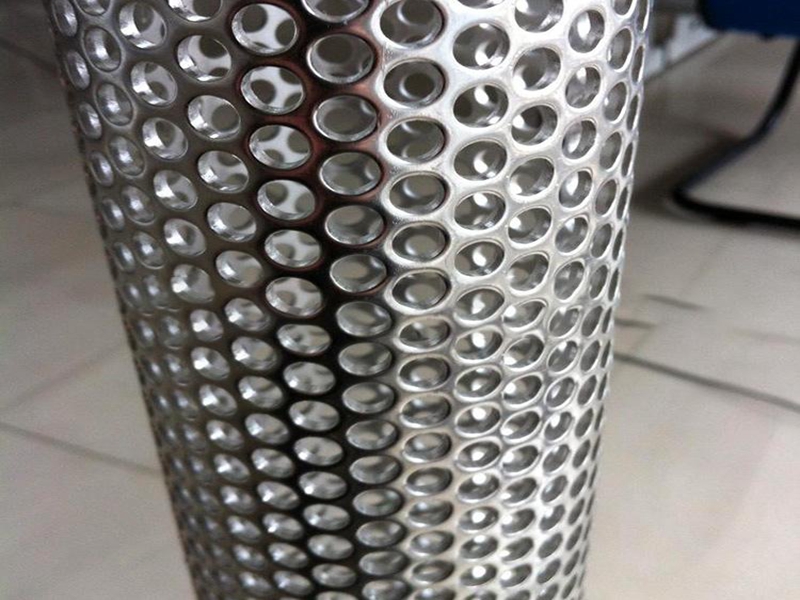

Round hole perforated sheets are the most common and most requested. There are several types of hole diameters: very small, medium and large size. Hole pattern is of primary importance: the most popular arrangement is the 60 degree angle pattern, which combines a high rigidity and a decent proportion between open and full areas. The 90° pattern is equally popular, above all for aesthetic needs whereas the 45° pattern is now almost disused.
Round Hole Perforated Metal characteristics
Smooth surface, anti-aging, resistant to bend, resistant to corrosion and high temperature, good sound-absorbing,durable and widely used.
Round hole perforated sheet offers the widest options of hole sizes, gauges, materials and sheet size for all types of applications. For example:
* Cladding and ceiling panels
* Sunshade and sunscreen
* Filter to sieve seed, stone and other bulk materials
* Decorative banister
* Protective fences of overpasses and machine equipments.
* Balcony and balustrade panels
* Ventilation sheet, such as air condition grilles
Specification
| Material | Low carbon steel ,Stainless steel sheet, Galvanized steel ,Aluminum metal | ||
| Thickness | 0.4mm to 3mm (Cold Rolled process) 3mm to 35mm (hot rolled process) | Aperture | 0.5--200mm |
| Size | 1200*2400mm, 1220*2440mm, 1000×2000mm or Customized | Width | 500-1600mm |

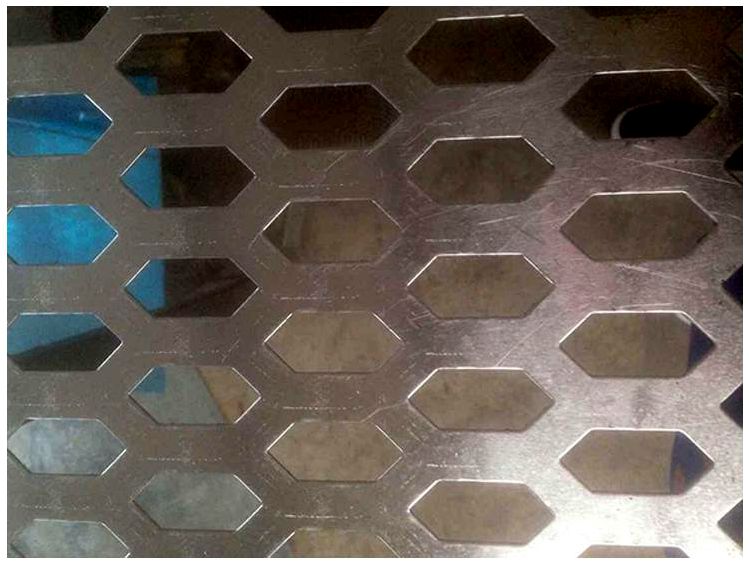

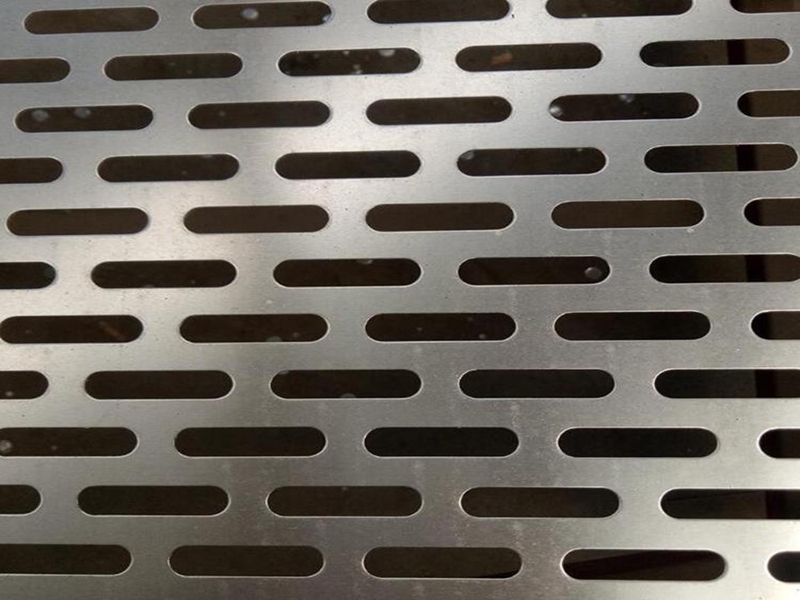

| Hole shape | Rectangular, square, Diamond , round,Triangular,Louver, irregular hole | ||
| Hole arrangement | 90°staggered,45°staggered, 60°staggered , 90°straight | ||
| Surface treatment | Galvanized ,Powder coating, Anodized, Fluorocarbon coating | ||
| Standard | AISI,ASTM,JIS,EN, DIN,GB | ||
| Grade | 300/400/200 series(310S .309S. 316Ti. 316L. 304L. 321 .....) | ||
| Technical treatment | Hot Rolled/Cold Rolled | ||
| Advantages | Light weight,durable application,good sound absorption,various hole design | ||
| Application | Machinery, filtration, enclosure, equipment, handicrafts production, Kitchenware, Tanks, Food Processing, cutlery, construction, household hardware | ||
| Package | In bundles, packed with Water proof paper and wooden pallet. To be packed strongly avoid damage during transportation, and can be also according to the regulations and customer's requests. Furthermore, products packages also are tagged clear on the outside for easy identification of the product and quality information. | ||
