Material: | Galvanized steel wire |
Features: | Has good tenacity and elastcity |
Application: | Security and fencing uses |
Material: | Galvanized steel wire |
Features: | Has good tenacity and elastcity |
Application: | Security and fencing uses |
Material: Galvanized steel wire,stainless steel wire, PVC coated wire
Types of Barbed Wire:

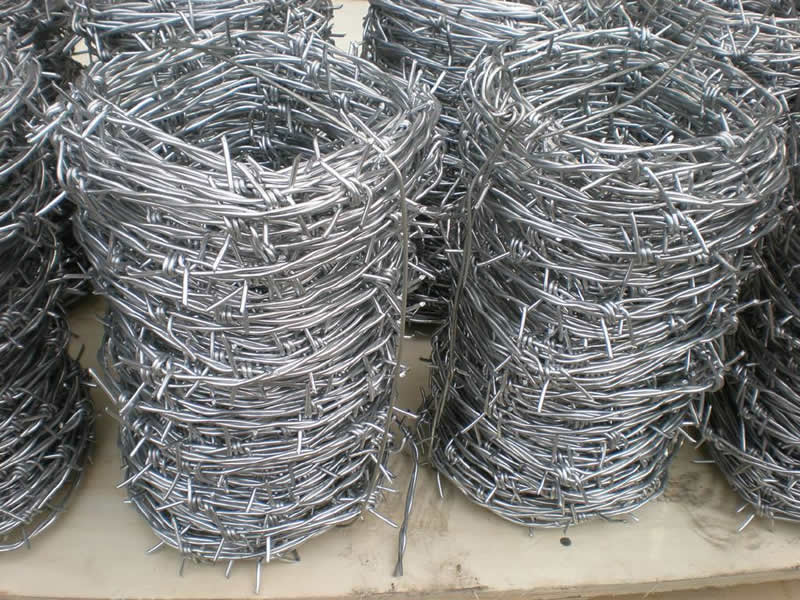

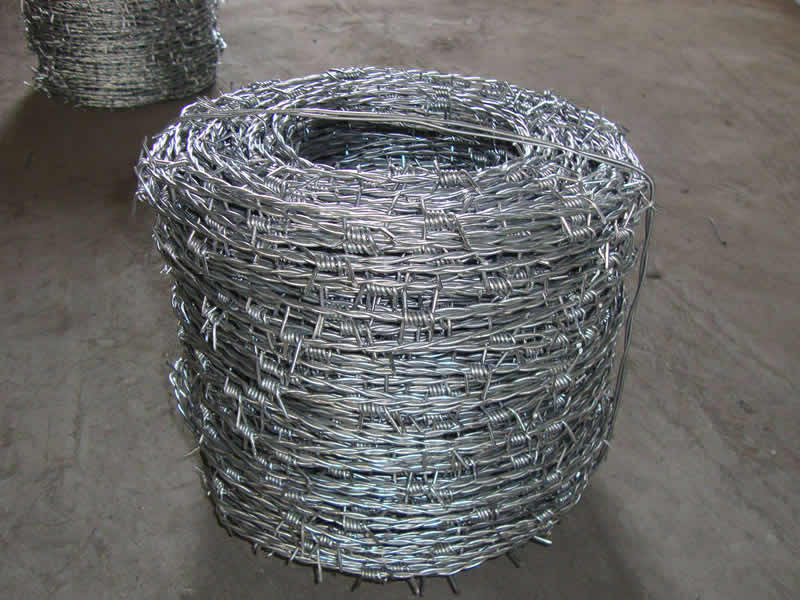

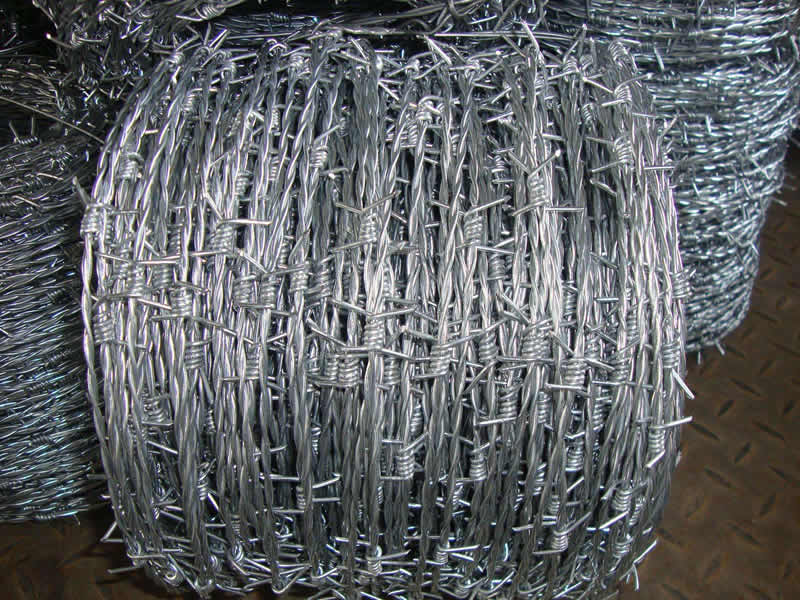

* Galvanized Barbed Wire

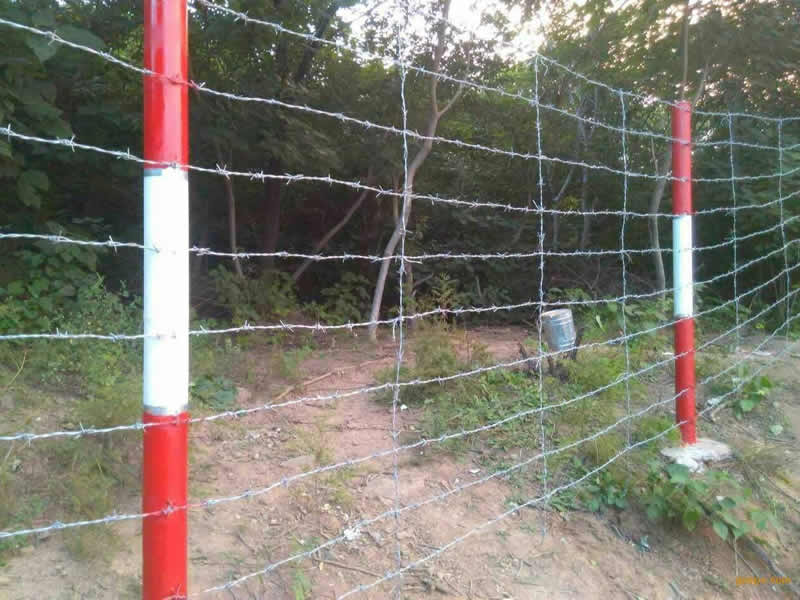

Galvanized barbed wire is used in defending of farm land, sport ground, or used together with concertina razor wire. Normally it's settled above the fence, for example chain link fence and welded fence, avoiding climbing across. Galvanized barb wire can also form a barbed wire wall with wooden sticks or iron sticks. The weaving methods are one main wire, one barbed wire; one main wire, twin barbed wire; and twin main wire, twin barbed wire.

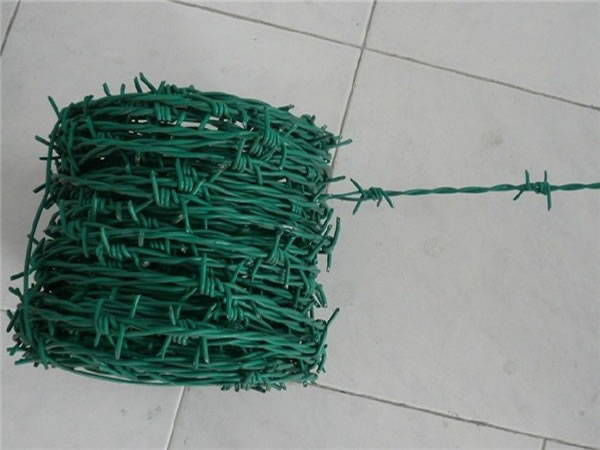

* PVC Coated Barbed Wire
Core of PVC coated barbed wire can be galvanized iron wire A variety of colors like green, blue, yellow, orange, gray
Packing: In coil of 25 kilos or 50 kilos , lined with PVC strips, then wrapped with P.V.C or hessian cloth
Barbed wire weave types:
1) Single strand barbed wire,
2) Double strand double twisted barbed wire;
3) Double strand common twisted barbed wire
Specification List:
Material | Weaving type | Wire gauge(SWG) main wire * barbed wire | Barbed Distance(mm) | Barbed Length(mm) | |
1.Electric galvanized barbed wire; 2.Hot-dipped galvanized barbed wire | 1.Single Twisted 2.Double Twisted | 10#*12#(3.2*2.6mm) | 75-150mm(that is 3 or 4 or 5 or 6) | 15-30mm | |
12#*12#(2.6*2.6mm) | |||||
12#*14#(2.6*2.0mm) | |||||
14#*14#(2.0*2.0mm) | |||||
14#*16#(2.0*1.6mm) | |||||
16#*16#(1.6*1.6mm) | |||||
16#*18#(1.6*1.2mm) | |||||
3.PVC coated barbed wire 4.PE barbed wire | Before coating | After coating | 75-150mm(that is 3 or 4 or 5 or 6) | 15-30mm | |
1.0mm-3.5mm | 1.4mm-4mm | ||||
BWG11#-20# | BWG3#-17# | ||||
PVC PE coating thickness: 0.4mm-0.6mm; Different colors or length are available at customers' request. |
